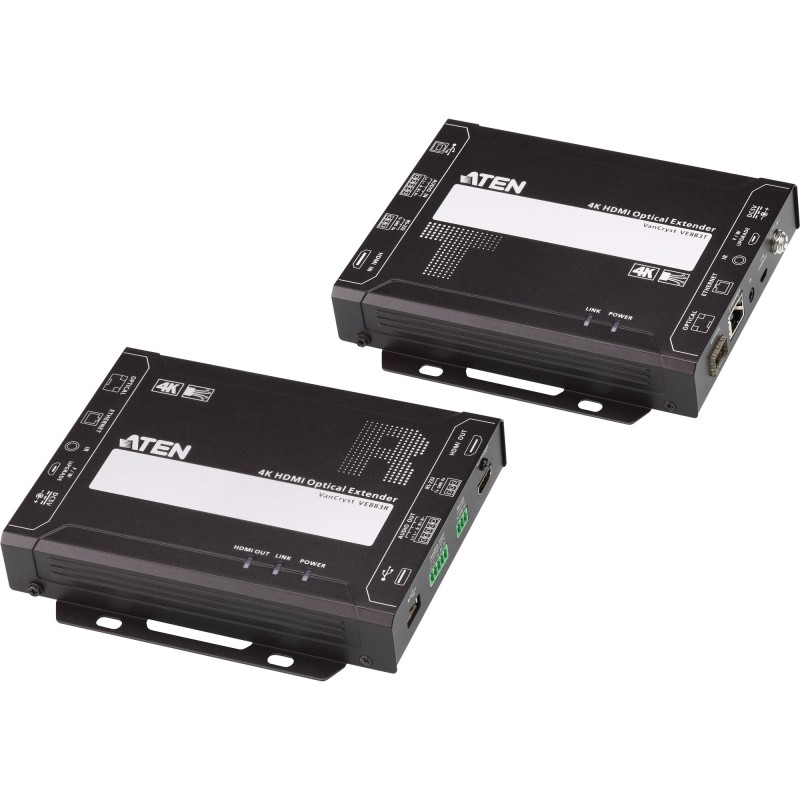

60671B - Rallonge HDMI ATEN VE883K1 via Fibre optique /LWL duplex multimode, 4K, max. 300 m
- Rupture de stock
60671B - Rallonge HDMI ATEN VE883K1 via Fibre optique /LWL duplex multimode, 4K, max. 300 m
The VE883 is a fiber-based extender designed to extend uncompressed 4K signal up to 300 m (using VE883K1) or 10 km (using VE883K2) over duplex fiber optic cables. The VE883 meets HDMI Specifications, including 3D, Deep Color (up to 12 bit), and signaling rates (up to 10.2 Gb) to ensure superior video quality. With ATEN’s exclusive FarSmooth technology, the VE883 prevents lagging and freezing by matching the output rates to the input rates and ensures the video display is stable, smooth and identical to the source, particularly in long-distance extension applications where uninterrupted video streams are required. The VE883 features an HDMI input and output, analog audio input and output, USB2.0, IR, RS-232 control port, and a Gigabit Ethernet port. For point-to-point extension, the VE883 can receive fiber optic cables by inserting SFP+ modules to its optic port.To avoid bulky cable setup, the VE883 guarantees a simple and fast solution for optimum transmission of Ethernet, IR, HDMI, RS-232, and USB signals up to 10 km simply via a set of duplex optic fiber. The VE883 is also USB transparent, making it compatible with a wide range of USB peripherals.Engineered to meet the latest trend of lossless 4K and long distance signal extension, VE883 is suitable for where long distance transmission is a must and little interference is allowed, such as in traffic station and modern office buildings.Extends HDMI video, stereo audio, IR, RS-232 control, and Ethernet signals over duplex fiber optic cablingApplies duplex fiber optic cables to connect the transmitter and the receiverSupports ultra long distance transmission up to 300m/10kmHDMI (3D, Deep Color, 4K); HDCP 2.2 compliantSupports lossless 4K video up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0)FarSmooth – ATEN’s exclusive FarSmooth technology prevents lagging and freezing by matching the output rates to the input rates and ensures the video display is stable, smooth and identical to the source, particularly in long-distance extension applications where uninterrupted video streams are required.Supports Gigabit Ethernet ChannelSupports USB 2.0, with a maximal transfer rate of 25MbpsBi-directional IR signal transmission – IR transmission is processed one direction at a time, ranged from 30 kHz to 56 kHzFeatures RS-232 serial port for connecting peripherals such as touch screens, and barcode scannersSupports batch upgrades using Firmware Upgrade UtilityBuilt-in 8 kV / 15 kV ESD protectionPlug-and-playHot-pluggableRack-mountablePackage Contents:1x VE883T 4K HDMI Optical Transmitter1x VE883R 4K HDMI Optical Receiver2x Power Adapters2x Terminal Block 3 Pole2x Terminal Block 5 Pole1x IR Receiver1x IR Emitter1x USB Cable2x HDMI LockPro2x SFP Modules1x User InstructionsDeviceVE883RVE883TVideo InputInterfacesN/A1 x HDMI Type A Female (Black)ImpedanceN/A100 OhmsMax. DistanceN/AUp to 5 mVideo OutputInterfaces1 x HDMI Type A Female (Black)N/AImpedance100 OhmsN/AMax. DistanceUp to 10 mN/AVideoMax. Data Rate10.2 Gbps (3.4 Gbps Per Lane)10.2 Gbps (3.4 Gbps Per Lane)Max. Pixel Clock340 MHz340 MHzComplianceHDMI (3D, Deep Color, 4K) HDCP 2.2 CompatibleHDMI (3D, Deep Color, 4K) HDCP 2.2 CompatibleMax. Resolution4096x2160/3840x2160@60Hz (4:2:0); 4096x2160/3840x2160@30Hz (4:4:4)4096x2160/3840x2160@60Hz (4:2:0); 4096x2160/3840x2160@30Hz (4:4:4)Max. Distance1 x SFP Module (*Note)VE883K1: up to 300m (MM, OM3, Black)VE883K2: up to 10km (SM, Blue)1 x SFP Module (*Note)VE883K1: up to 300m (MM, OM3, Black)VE883K2: up to 10km (SM, Blue)AudioInputN/A1 x Terminal Block, 5 pole (Green)Output1 x Terminal Block, 5 pole (Green)N/AConnectorsUnit To Unit1 x bi-directional SFP (LC)1 x bi-directional SFP (LC)Firmware Upgrade1 x Micro USB (Type B) Female (Black)1 x Micro USB (Type B) Female (Black)Power1 x DC Jack with locking1 x DC Jack with lockingFiber OpticsData Rate10.3 Gbps10.3 GbpsWavelengthVE883K1: 850 nmVE883K2: 1310 nmVE883K1: 850 nmVE883K2: 1310 nmFiber TypeVE883K1: Multimode(MM), OM3, LC Duplex TypeVE883K2: Singlemode(SM), LC Duplex TypeVE883K1: Multimode(MM), OM3, LC Duplex TypeVE883K2: Singlemode(SM), LC Duplex TypeControlUSB Channel1 x USB Type A Female (White)1 x USB Type B Female (White)RS-232 Channel1 x Terminal Block, 3 pole (Green)1 x Terminal Block, 3 pole (Green)IR Channel1 x Mini Stereo Jack Female (Black);30~56 KHz full range transmission1 x Mini Stereo Jack Female (Black);30~56 KHz full range transmissionEthernet Channel1 x RJ45 Female1 x RJ45 FemaleLEDsPower1 (Green)1 (Green)Link1 (Orange)1 (Orange)Video Output1 (Orange)N/APower ConsumptionDC5V:7.05W:33BTUDC5V:6.77W:42BTUDC5V:7.05W:33BTUDC5V:6.77W:42BTUEnvironmentalOperating Temperature0-40°C0-40°CStorage Temperature-20 - 60°C-20 - 60°CHumidity0 - 80% RH, Non-Condensing0 - 80% RH, Non-CondensingPhysical PropertiesHousingMetalMetalWeight0.64 kg ( 1.41 lb )0.64 kg ( 1.41 lb )Dimensions (L x W x H) with bracket16.94 x 14.69 x 3.00 cm (6.67 x 5.78 x 1.18 in.)16.94 x 14.69 x 3.00 cm (6.67 x 5.78 x 1.18 in.)Dimensions (L x W x H) without bracket16.60 x 12.49 x 2.90 cm (6.54 x 4.92 x 1.14 in.)16.60 x 12.49 x 2.90 cm (6.54 x 4.92 x 1.14 in.)Carton Lot5 pcs5 pcsNote1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fiber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.2. It is recommended that you use Single Mode fibers that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifications; Use Multi Mode fibers that conform to IEC 11801 (OM3) specifications.3. The Device is class 1 laser product. It meet the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11.1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fiber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.2. It is recommended that you use Single Mode fibers that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifications; Use Multi Mode fibers that conform to IEC 11801 (OM3) specifications.3. The Device is class 1 laser product. It meet the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11.NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
