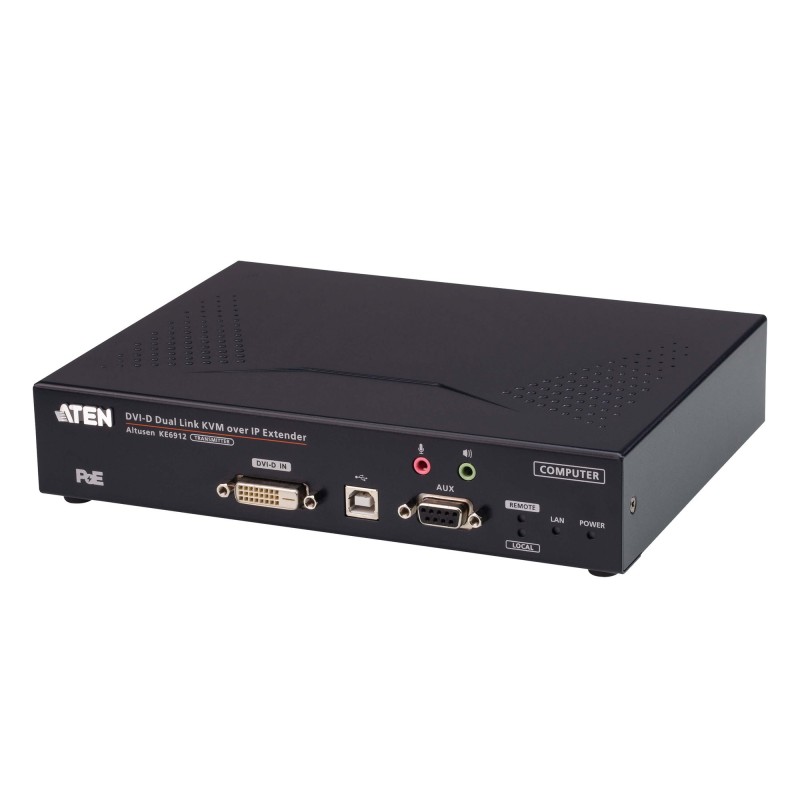

60670H - Émetteur KVM sur IP ATEN KE6912T 2K DVI-D double liaison avec PoE

The KE6912 2K DVI-D Dual Link KVM over IP Extender consists of a high performance IP-based transmitter (KE6912T) that connects to the computer and receiver (KE6912R) that provides console access from a separate location. The KE6912 allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DVI monitor) over an intranet, enabling users to locate computers in a secure and temperature controlled environment, which is isolated from users’ workstation. The KE6912 supports one DVI display at each end, providing video resolutions up to 2560 x 2048 @ 50Hz and flawless and lossless video compression quality with minimal latency. The extender also supports 2K x 2K video resolution (2048 x 2048 @ 60Hz), which is used widely in the Air Traffic Control (ATC) industry. The KE6912 supports connections via an RJ-45 port or a SFP slot. The transmitter and receiver can be connected either directly to each other or via a high-speed network, over a copper-based or fiber-based LAN, ensuring 24/7 availability of remote access to servers. To connect via the SFP slot, the extender supports 1Gbps SFP fiber module* expansions, enabling connections via fiber optic network to extend transmission distances up to 10km. The KE6912 features Power over Ethernet (PoE) function, the power can be supplied through a PoE Network Switch; therefore, eliminating the need for a power adapter and effectively reducing the power configuration cost. The KE6912 can be set on a desk, mounted on a wall or at the rear of a rack with its space-saving 0U rack-mount design. As an IP-based matrix extender, the KE6912 can be used as a point-to-point / point-to-multipoint / multipoint-to-point extender, or integrated into a KVM over IP Matrix System (multipoint-to-multipoint) when combined with the KE Matrix Management Software (CCKM), providing more flexible applications in different working environments.When integrated with the KE Matrix Management Software, the KE6912 supports more advanced features such as authentication lock, adaptive fast switching, connection redundancy, disconnection alert, boundless switching, “Push” and “Pull”, video wall and multi-display setups, and profile scheduling that provide uninterrupted access with quick and easy control tools to use the KE6912 over a network. More functions include auto detection of all KE Series extenders** in the same subnet for the sake of fast installation or configuration, username / password authentication and authorization, and the ability to define different types of connections that can be switched and shared. Security features also provide extra protection, supporting AES encryption for secured data transmissions, while RADIUS, LDAP, AD or remote user authentication provides an added layer of connection security; moreover, with an OSD, RS-232 support, and Auto MDIX, the KE6912 is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.Whether you're monitoring, operating, controlling or extending computer access, the KVM over IP Matrix System is made adaptable, to fit an endless variety of working environments and workstation settings, to provide solutions in traffic management centers, retail surveillance centers, facility situation rooms, command control centers, utilities process control centers, broadcasting distribution monitoring systems, network operations centers (NOC), and many other industries where matrix extending is required.*The SFP module (2A-136G / 2A-137G) is sold separately. Contact your ATEN dealer for product information.**Refer to www.aten.com for a list of the KE Series extenders.Exclusive Features for ATC Industry*Supports 2K x 2K video resolution (2048 x 2048 @ 60Hz)Adaptive Fast Switching – automatically fast switches between different Tx video resolutions on a Rx display within 0.3 secondBoundless Switching - simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)“Push” and “Pull” – share content instantly to/from a single Rx or video wall by just one clickAuthentication Lock – automatically logs in when the power of the system is resumed after power offConnection Redundancy – automatically connects to another transmitter (Tx) after disconnection with the original Tx, ensuring constant access to serversDisconnection Alert – Pop-up warning message and looping alarm beeping notify users the disconnection statusAdvanced Features*Video Walls – create multiple video walls with up to 8 x 8 (64 displays max.) in each layoutAdvanced Scheduling – improves efficiency and saves costs by allowing connections to be set based on time and dateVirtual Transmitter – independently streams video, audio, USB, and serial sources from different TxSupports both internal and external authentication – external authentication supports LDAP, Active Directory, RADIUS and TACACS+Advanced User Authorization Settings – administrators can set four access modes of permissions on Tx devices for collaboration or to avoid interference among usersConfigurable user and group permissions for access and control of KE devicesTx grouping of up to 4 sets of KE transmitters to support multi-display applicationsRx access control – users at the Tx local console can enable / disable Rx access by simply pressing a control button***These advanced functions are supported when the KE devices are managed by KE Matrix Management Software (CCKM)**The KVM over IP Access Control Box (2XRT-0015G) is sold separately. Contact your ATEN dealer for product information.HardwareSupports DVI-D Dual Link video resolutions up to 2560 x 1600 @60Hz and 2560 x 2048 @50HzSupports stereo speakers and stereo microphoneSupports Virtual Media or vUSBAuto-MDIX – automatically detects cable typeBuilt-in 8KV/15KV ESD protection and 2KV surge protectionFanless design for silent operations that are energy efficientSupports connection via Gigabit Ethernet port (RJ-45) or 1Gbps SFP fiber module expansions*** for failoverSupport 1Gbps SFP fiber module expansions*** up to 10 km1 DC Jack + PoESupport Power over Ethernet (PoE) function – compliant with the IEEE 802.3at standardRack Mountable – Mounting options: - 2X-021G Dual Rack Mount Kit - 2X-031G Single Rack Mount Kit***The SFP module (2A-136G / 2A-137G) is sold separately. Contact your ATEN dealer for product information. ManagementCentralized KE Series management software – KE Matrix Management Software (CCKM) allows users to easily administrator all KE devices with an intuitive web-based GUIDual console operation – controls your system from both the transmitter’s and receiver’s keyboard, monitor, and mouse consolesLocal console for emergency operationOSD (On Screen Display) on the receiver configures both Tx / Rx devicesEDID Expert™ – selects optimum EDID settings to prevent video compatibility issue caused by different monitorsOn-screen Preview – allows users to view the video of up to 36 displays on one screenVideo Compression Level – allows you to increase/decrease the video quality to adjust for appropriate network bandwidthCLI – administrators can control all KE devices via RS-232 or Telnet by issuing commandsRS-232 serial ports – allow you to connect to a serial terminal for TextMenu, CLI, or serial devices such as touch screens and barcode scannersCompatible with all KE devicesSecurityDedicated LAN port for KE direct connections – can be isolated from the corporate networkSecure data transmission – AES encryption to secure Video / Keyboard / Mouse / Data transmissionSupports industry standard Transport Layer Security (TLS) protocolVirtual MediaVirtual Media mode enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testingSupports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO imagesSupports Smart Card/CAC ReaderPackage Contents1 x KE6912T 2K DVI-D Dual Link KVM over IP Transmitter1 x KVM Cable (DVI-D dual-link, USB, Audio; 1.8m/6ft)1 x Foot Pad Set (4 pcs.)1 x Mounting Kit1 x User InstructionsConnectorsVirtual MediaN/AConsole Ports2 x USB Type A Female (White)1 x DVI-D Female (White)1 x Mini Stereo Jack (Green)1 x Mini Stereo Jack (Pink)1 x DB-9 Male (Black)KVM Ports1 x USB Type B Female (White)1 x DVI-D Female (White)1 x Mini Stereo Jack (Green)1 x Mini Stereo Jack (Pink)1 x DB-9 Female (Black)Power1 x DC Jack (Black)LAN Ports1 x RJ-45 (Black, PoE)1 x SFP SlotSwitchesOSDN/AVideoN/AGraphicsN/AReset1 x Semi-recessed PushbuttonMode Selection1 x Slide Switch (Auto, RS-232 Config/Access Control, Local)LEDsLink 10 / 100 / 1000 Mbps1 (10: Orange / 100: Orange & Green / 1000: Green)Power1 (Blue)Local1 (Green)Remote1 (Green)EmulationKeyboard / MouseUSBPower ConsumptionDC48V:12.53W:84BTUVideo ResolutionUp to 2560 x 2048 @ 50Hz/2560 x 1600 @ 60HzEnvironmentalOperating Temperature0–50°CStorage Temperature-20–60°CHumidity0–95% RH, Non-condensingPhysical PropertiesHousingMetalWeight1.17 kg ( 2.58 lb )Dimensions (L x W x H)21.50 x 16.33 x 4.18 cm (8.46 x 6.43 x 1.65 in.)NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
