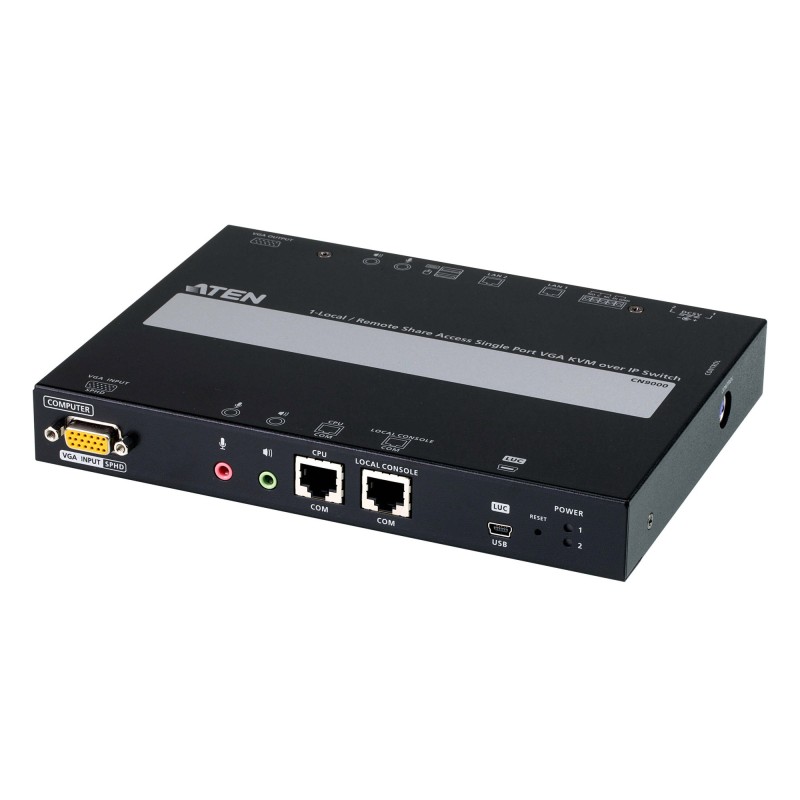

62666 - Commutateur KVM sur IP ATEN CN9000, accès au partage 1 local/à distance VGA à port unique

The CN9000 VGA KVM over IP switch provides remote access and control of video, audio and virtual media from a PC or workstation. It offers high VGA video resolution of up to 1920 x 1200 at 60 Hz at both the local and remote console. Equipped with USB and PS/2 support (keyboard and mouse), the CN9000 is compatible not only with modern workstations, but also with older generation systems and servers.For user-friendly operation, a mini USB port on the front is designed as a Laptop USB Console (LUC) port, allowing the user to access the PC/server for simple routine maintenance without the need for an additional monitor, keyboard and mouse. To ensure seamless connectivity, the CN9000 is equipped with dual LAN and dual power functionality to make server room operations smooth and efficient. Its power status detection feature automatically sends event notifications when the unit goes offline (e.g. power failure) to monitor the unit status. In addition, the CN9000 has a 5-pin relay/DI terminal block (digital input) that enables external reboot of the local server and reception of digital inputs from a connected input/alarm device for critical event notification.For easy remote management, the CN9000 WebClient Viewer supports remote desktop access without additional software applications. The VGA KVM over IP switch provides a web-based GUI for remote access and management. The unified multi-language user interface can effectively minimise user training time and increase productivity. HardwareHigh video resolution - up to 1920 x 1200 at 60 HzLaptop USB Console (LUC) - a dedicated mini USB port for direct, console operation from a laptopProvides over-IP capability for KVM switches without over-IP functionalityProvides FPGA GPU for better image quality and increased throughput (frames per second) for crisp video playbackDual power supply and dual LAN for power and network redundancySupports 5-pin relay/DI terminal for environmental monitoring and reboot controlSupports legacy PS/2 Keyboard and MouseAdministrationComplies with RS-232 serial control standardsUp to 64 user accounts - up to 32 users can share control simultaneouslyConsole access rights managementSession termination feature - administrators can terminate running sessionsEvent logging and Windows-based log server supportEvent logging - the CN9000 can record all events, take place on it and write them to a searchable databaseSupports immediate notification of critical system events via email, SNMP trap and syslogPossible to upgrade firmware remotelyAccess the CN9000 via a built-in serial viewer or via third-party software (e.g. B. PuTTY) for Telnet and SSH sessionsOut of Band Support - access the CN9000 through its serial port via a dial-up connectionPort Sharing Mode allows multiple users to access a server simultaneouslyDNS - allows assignment of a dynamic IP address, assigned by a DHCP server to a host nameSupports export/import of user account and configuration settingsSupports permission-controlled browser usageSupports IPv6User-friendly interfaceBrowser-based and AP GUIs with multilingual interface to minimise user training time and increase productivityMultiplatform client support (Windows, Mac, Linux, Sun)Multi-browser support (IE, Firefox, Safari, Opera, Chrome)Browser-based UI in pure web technology allows administrators to perform administrative tasks without pre-installed Java software packageFull screen or resizable and scalable Virtual Remote DesktopMagic Panel with configurable feature for quick start-upAdvanced securitySupport for smart card/CAC readerSupport for external authentication: RADIUS, LDAP, LDAPS and MS Active DirectorySupports TLS 1. 2 data encryption and RSA 2048 bit certificates to secure user login in browser RC4 or Random for independent keyboard/mouse, video and virtual media data encryptionFlexible encryption design to select any combination of 56 bit DES, 168 bit 3DES, 256 bit AES, 128 bit RC4 or Random for independent keyboard/mouse encryption, video and virtual media dataSupports IP/MAC filterSupports password protectionPrivate CAVirtual MediaVirtual Media enables applications, OS patching, software installations and diagnostic testingWorks with USB-enabled servers at OS and BIOS levelSupports USB 1. 1 and USB 2. 0 DVD/CD drives, USB mass storage devices, PC hard drives, folders and ISO imagesVirtual Remote DesktopVideo quality and video tolerance can be adjusted to optimise data transfer speed; Monochrome colour depth, threshold and noise settings can be adjusted for data bandwidth compression in low bandwidth situationsFull screen video display or scalable video displayMessage board for communication among remote usersScreen keyboard with multiple language supportMouse DynaSync™ - automatic synchronisation of local and external mouse movementsSupports exit macrosBIOS level accessScope of supply: 1x CN9000 VGA KVM-over-IP switch1x KVM cable (VGA, PS/2, USB)1x USB cable (USB Type-A to Mini-B)1x power adapter1x control terminal block1x mounting kit1x foot pad set1x user manualConnectorsConsole ports2 x USB Type A socket (White)1 x VGA socket (Blue)1 x Mini stereo socket (Green)1 x Mini stereo socket (Pink)KVM- Ports1 x SPHD jack (Yellow)1 x Mini stereo jack (Green)1 x Mini stereo jack (Pink)LAN ports2 x RJ-45 jackVirtual Media1 x USB- Mini-B socketPower supply2 x DC connectorSerial2 x RJ- 45 socketControl1 x PS/2 socketSwitchReset1 x Half recessed push button (Black)EmulationKeyboard / MouseUSB, PS/2LEDsPower2 (Green)VideoLocal Console -. 1920 x 1200 at 60 HzExternal console - 1920 x 1200Power consumptionDC5V: 7. 46W: 39BTUEnvironmentOperating temperature0 - 50°C (CN9000)0 -. 40°C (power supply)Storage temperature-20 - 60°CHumidity0 - 80% relative humidity, non-condensingPhysical propertiesHousingMetalWeight0. 86 kg ( 1.89 lb )Dimensions (L x W x H)20.00 x 15.41 x 2.85 cm (7.87 x 6.07 x 1.12 in. )NoteFor some rack-mount products, please note that the usual dimensions of WxDxH are given in an LxWxH format.
