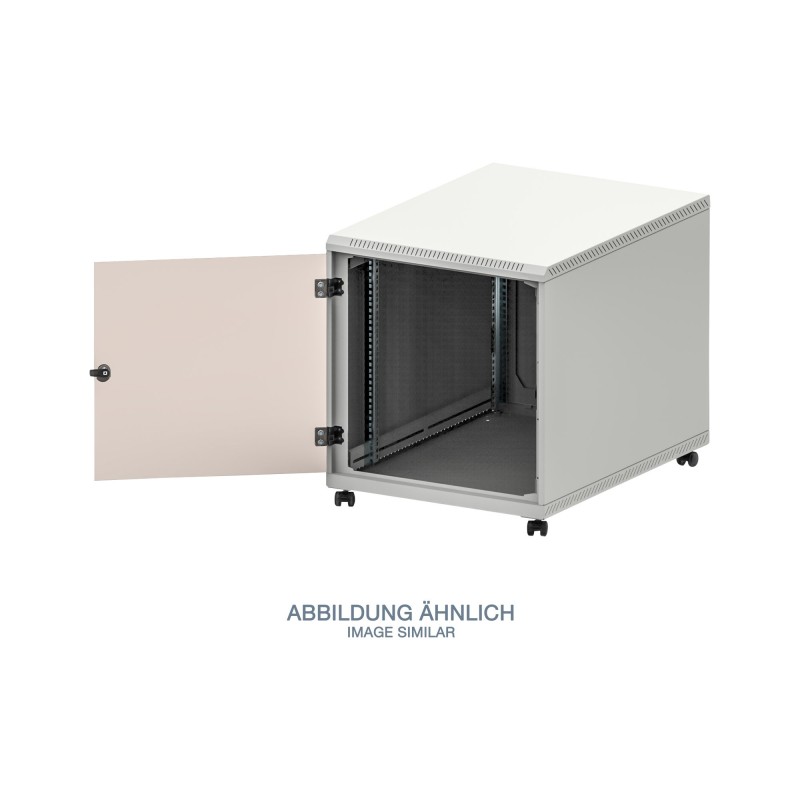

01912H - Triton RCA-12-A69-CAX-A1 19 armoire au sol 12U avec roulettes, 600x900mm, gris

RCA represents one of the non-standard data cabinet solutions. Its construction is right from the beginning designed to concentrate an office network infrastructure under one of the office tables Cabinet has a robust welded construction. High quality processing and the up-to-date technology ensure a perfect look of the cabinet. Cabinet door is glass standardly but it can be steel or perforated as required. The hinge system enables almost 180° wide opening of the door. Doors can be easily removed.CASTORS:This type of cabinet is installed on castors (included in the supply). Two of them are with a brakeADJUSTABLE VERTICAL RAILS:Two pairs of freely adjustable vertical 19" rails are supplied with a pair of middle rails on the cabinet types with 900 and 1000 mm depthsBREAKOUT-TYPE BLANKING PANELS:Cable openings covered with breakout-type blanking panels are located in the bottom and rear part of the cabinetHIGH RIGIDITY CONSTRUCTION:Cabinet has a robust welded construction. High quality processing and the up-to-date technology ensure a perfect look of the cabinet.FLEXIBLE DOOR OPENING:The hinge system enables almost 180° wide opening of the door. Doors can be easily removed.DOOR LOCKIt enables an easy and quick access into the cabinet.DOORThe cabinet has fully glass door in standard. It can be steel or perforated if required.FAN UNIT INSTALLATIONOn the back wall is the preparation in form of break-out openings for the installation of fan units RAx-CH-X2x-X1 or fans RAX-CH-X07-X9 for wall mounting cabinet to support cooling of installed equipment (see Active cooling).DESCRIPTION, PURPOSE OF USE19" container cabinet with IP30 protection Cabinet is intended to be placed on castors under a work desk The cabinet includes two pairs of vertical rails (three pairs at cabinets deeper than 800 mm).Cabinet construction: Compact welded cabinet / Safety hardened glass door, thickness 4 mm. On demand may be metal or perforated.Max. permissible load of the door is 10 kg Min. thickness of the surface finish is 65 micrometerCabinets are intended for installation of data and telecommunication devices and their distribution systemsThe frame of the cabinet and all the removable parts are connected with earthing cables that have to be properly fixed and inserted into connectors during all the time when using the cabinet.There is one M8 screw placed on the bottom part of the cabinet as an earthing main point. Cable openings covered with breakout-type blanking panels are placed in the top and the bottom part of the cabinet rear side, others are in the bottom side of the cabinetOPERATION CONDITIONSOperation environment:Office The cabinet is not intended for outdoor installations and for installations in environment that can influence negatively the functionality of the cabinet and the mounted devices (e.g. environment with danger of explosion or humid and wet surroundings)Must be protected against:Mechanical damageImproper manipulationA different usage than the cabinet is intended for Improper manipulation is especially:Overloading (maximum recommended load exceeding)Device installation that can influence negatively operation and function of the cabinet or the installed equipmentChange of the construction or design of the cabinetINSTALLATION OF THE CABINETThis type of cabinet is installed on castors (included in supply). Two of them are with brakeENVIRONMENT PROTECTIONAll parts are made of recyclable materials and after its discard, it is necessary to dispose the cabinet according to valid regulationsSupply includes: 2x key - front door, 2x castor with brake, 2x castor without brakeMaterial: Safety hardened glass 5 mm thick, steel sheetDimension (HxWxD in mm): 620 x 600 x 900Door size (HxW in mm): 515 x 490Net weight: 43,4 kg / Gross weight: 53,2 kg
